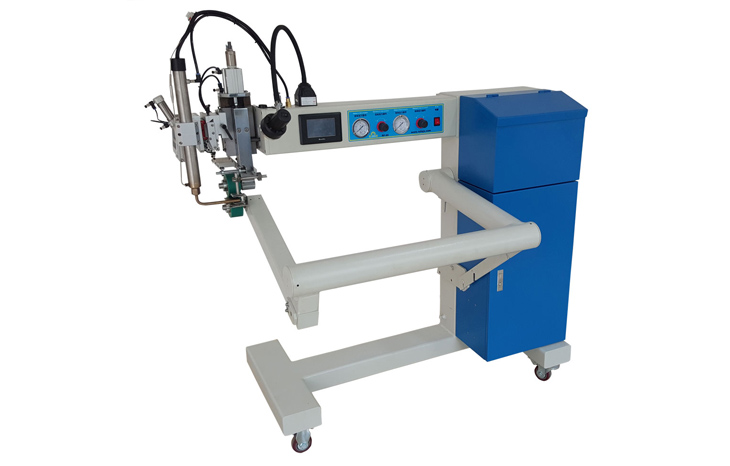

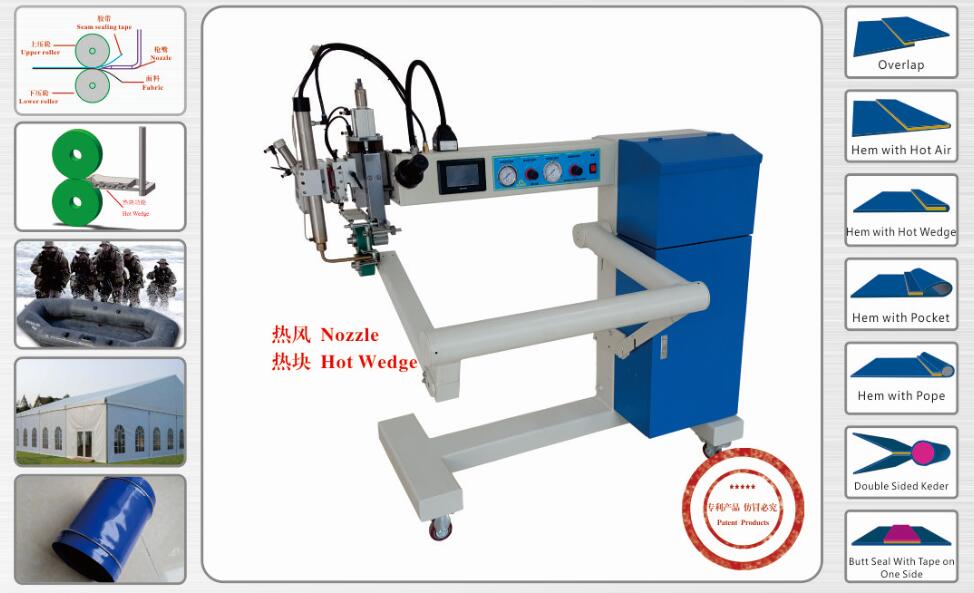

RF-A12 Hot air welding for hem welding and overlap welding

RF-A12 Hot air welding for hem welding and overlap welding

技术参数

Technical Parameter


型号 ModelRF-A12
功率 Power3000W
热风温度 Heat controlUp to 700°C for hot air
热块温度  Heat controlUp to 450°C for hot wedge
热压温度Up to 250°C
速度 Speed1-18m/min
压缩空气 Pressrue0.35-0.5M
压轮宽度 Roller width20/30/40/50mm
枪嘴宽度 Nozzle width20/30/45mm
可选功能 Option Function热块功能 Hot Wedge
机器尺寸 Dimension1500*750*1600mm
净重 Net weight245kg

RF-A12特点:


1超大操作空间,广泛应用于网格PVC面料的焊接,如篷房,充气艇,广告横幅等


2.具有热风和热块两种功能


3.采用PLC可编程,触摸式数字显示


4温度自动控制,稳定性能高,温度上限报警设计,保护发热丝


5自动补偿虚位,自动微退,减少压带空白


6双脚踏控制,操作舒适,适宜长时间操作


7可连续24小时工作


8独特发热管结构,进风经过滤,绝无水分和油分


9超强大的扭动力设计


Features of rF-A12:


1. Bigger operation space, widely used in coated Pvc fabric welding, such as tent house, inflatable boat/water tank, banner etc


2. With both hot air and hot wedge function


3. Editable PLC control, touch screen display


4. Auto temperature control with warning device for the up limit temperature


5. Auto compensation and reverse


6.Double pedals control


7.It could work up to 24 hours


8.Blowing-in hot air is filtrated without any water and oil


9. Super strong torsional dynamic design
